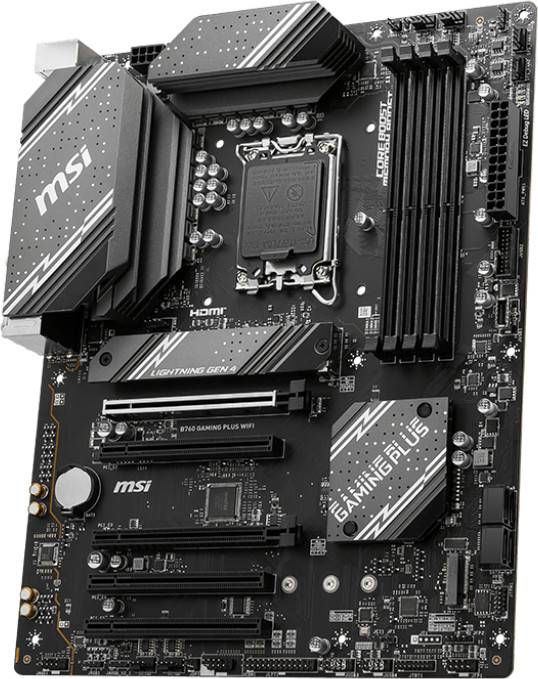

MSI B760 GAMING PLUS WiFi
Similar and better products
- Current product
-
MSI B760 GAMING PLUS WiFi
-
€ 166,-
-
€ 263,-
-
€ 140,-
-
€ 228,-
-
€ 252,-
- Intel B760
- Intel Z790
- Intel B760
- Intel Z790
- Intel Z790
- 5
- 2
- 2
- 4
- 2
- Yes
- Yes
- No
- No
- Yes
Product information
Pros and cons
According to our motherboard expert
- Thanks to the 1700 socket, the motherboard supports the 12th and 13th generation Intel processors.
- With the extra-large heatsink, you can protect your components and increase the heat dissipation surface.
- The motherboard doesn't have a Thunderbolt 3 connector for fast data transfer.
Description
Tips for using this product
Read our tips and find out all about how to set up your product and use it the right way.
Included by default
- Manual
- SATA cable
- I/O Shield
- WiFi antenna
- Screw kits for M.2 SSD
Specifications
Product
- Product number
- 949704
- Manufacturer code
- 7D98-007R
- Brand
- MSI
- Warranty
- 3 years
- Processing of your defect
- Via Coolblue
General properties
- Compatible with Windows version
- Windows 10, Windows 11
- Suitable casings
- Full Tower, Mid Tower
- Form factor (motherboards)
- ATX
Chipset properties
- Chipset brand
- Intel
- Motherboard chipset
- Intel B760
- Socket (CPU)
- 1700 (12th gen Intel), 1700 (13th gen Intel), 1700 (14th gen Intel)
- Support for overclocking
- Chipset cooler (motherboards)
- Passive
Memory slot properties
- Total number of RAM slots
- 4
- Memory type
- DDR5
- Memory speed
- 4800 MHz
- Maximum memory speed
- 6800 MHz
- Maximum internal memory
- 256 GB
- Number of memory channels
- Dual channel (2)
PCIe connectors
- PCI Express x1 slots
- 0
- PCI Express x16 slots
- 5
- Number of PCIe 4.0 (x16/x16) connectors
- 1
- Number of PCIe 4.0 (x16/x4) connectors
- 1
- 3
Storage properties
- Supported M.2 SSD formats
- 22x80mm
- Nubmber of M.2 connectors
- 2
- Number of cooled M.2 SSD slots
- 1
- Number of M-key (PCIe 4.0 + SATA III) slots
- 1
- Number of M-key (PCIe 4.0) slots
- 1
- Number of SATA connectors
- 4
WiFi and Bluetooth properties
- Built-in WiFi
- WiFi standards
- Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless AXE (WiFi 6E), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4)
- Bluetooth
- Bluetooth version
- 5.3
Video connections
- DisplayPort connector
- Number of Female Standard DisplayPort 1.4 ports
- 1
- HDMI connector
- Number of Female HDMI type A 2.1 ports
- 1
- Thunderbolt connector
- DVI connector
- VGA connector
USB connectors
- USB-C ports back panel
- Number of USB-C 3.2 Gen 2 (10Gbps) ports back panel
- 1
- USB-A ports back panel
- Number of USB-A 2.0 (480Mbps) ports back panel
- 4
- Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel
- 2
Audio and Ethernet connectors
- Headphone jack
- Microphone connector
- Number of microphone connectors
- 1
- Ethernet port
- Number of 2.5Gbps Ethernet ports
- 1
- Digital optical connector
- Audio processor
- Realtek ALC897
Power connectors
- Fan headers
- Number of 4-pin CPU fan headers
- 1
- Number of 4-pin system fan headers
- 5
- Number of 4-pin CPU water cooling fan headers
- 1
- Type of power connector for motherboard
- 24-pin ATX connector
- RGB headers
- Number of RGB headers
- 3
- USB headers on the motherboard
- Number of USB 2.0 (480Mbps) headers on the motherboard
- 2
- Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard
- 2
Other connectors
- USB-A ports on the motherboard
- 0
- BIOS flash button on the motherboard
- Clear CMOS button on the motherboard
- Power button on the motherboard
RGB lighting
- RGB lighting
- Zones separately lit
