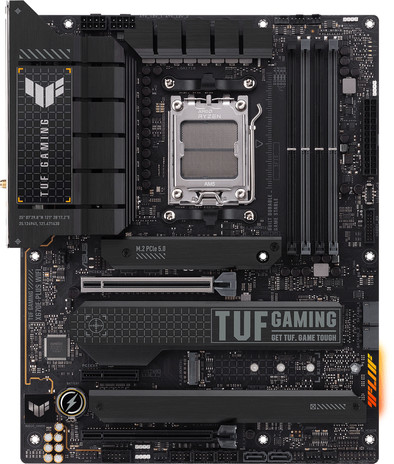

ASUS TUF GAMING X670E-PLUS WIFI
Product information
Pros and cons
According to our motherboard expert
- You can install AMD Ryzen 7000 processors in this motherboard thanks to the AM5 socket.
- This motherboard is very future-proof thanks to DDR5 RAM support.
- The TUF GAMING X670E-PLUS WIFI has room for 4 M.2 SSDs, so you can create fast storage.
- This socket isn't suitable for AMD processors older than the 7000 series.
Description
Note: this motherboard only works with AMD Ryzen 7000 processors, with an AM5 socket.
You can combine future-proofness and sturdy build quality with the ASUS TUF GAMING X670E-PLUS WIFI. This ATX motherboard has room for 4 DIMM RAM modules with DDR5 support up to 6400MHz. This way, you can create fast and powerful RAM up to 128GB. This motherboard has room for 4 M.2 SSDs, so you create future-proof storage space. One of these M.2 slots offers PCIe 5.0 support, so you can work with even faster SSDs. The X670 chipset is designed to work with AMD Ryzen 7000 series processors. In other words, you're ready for a new AMD build with this motherboard. As part of the X670 chipset, this motherboard is also suitable for overclocking. The design of this TUF GAMING motherboard provides algorithms for overclocking as well as cooling. This allows you to accurately track the performance and the heatsinks draw away the heat actively. As a result, your components stay properly cooled. For your internet, the 2.5Gbps Ethernet port provides a powerful and stable internet connection. Prefer a wireless connection? Choose the WiFi 6E module with an extra strong wireless connection. If you want to connect your accessories, you have plenty of ports to choose from. You connect a monitor via the DisplayPort 1.4 or HDMI 2.1 port, and your essentials via the many USB 3.2 Gen 2 ports.
Included by default
- Manual(6.96 MB)
- I/O shield
- WiFi antenna
- 2x SATA cable
- Cooling accessories
- Mounting kit
Key specs
Socket (CPU) | AM5 (7th gen AMD) | |
Motherboard chipset | AMD X670 | |
Form factor (motherboards) | ATX | |
Total number of RAM slots | 4 | |
Nubmber of M.2 connectors | 4 | |
PCI Express x16 slots | 3 | |
Built-in WiFi | ||
Support for overclocking |
Suitable accessories
Reviews
Rating
5 stars
1
4 stars
0
3 stars
0
2 stars
0
1 star
0
Most helpful reviews
10/10 ()
2 the choice order works well
- Everything included
- Just included installation booklet
- No
Bought as a 2nd choice model, looked as described according to the A status 2nd choice.
Ma
27 August 2023
Automatic translation off Dutch
Specifications
The list with properties are filtered when you type
Product
Product number | 916760 | |
Manufacturer code | 90MB1BK0-M0EAY0 | |
Brand | ASUS | |
Warranty | 3 years | |
Processing of your defect | Via Coolblue |
General properties
Compatible with Windows version | Windows 10, Windows 11 | |
Revision | 1.0 | |
TPM (Trusted platform module) | ||
Suitable casings | Full Tower, Mid Tower | |
Form factor (motherboards) | ATX |
Chipset properties
Chipset brand | AMD | |
Motherboard chipset | AMD X670 | |
Socket (CPU) | AM5 (7th gen AMD) | |
Support for overclocking | ||
Chipset cooler (motherboards) | Passive |
Memory slot properties
Total number of RAM slots | 4 | |
Memory speed | 4800 MHz | |
Number of memory channels | Dual channel (2) |
PCIe connectors
PCI Express x1 slots | 0 | |
PCI Express x16 slots | 3 | |
Number of PCIe 5.0 (x16/x16) connectors | 1 | |
Number of PCIe 4.0 (x16/x4) connectors | 2 |
Storage properties
Supported M.2 SSD formats | 22x80mm | |
Nubmber of M.2 connectors | 4 | |
Number of M-key (PCIe 5.0) slots | 1 | |
Number of M-key (PCIe 4.0) slots | 2 | |
Number of SATA connectors | 4 |
WiFi and Bluetooth properties
Built-in WiFi | ||
WiFi standards | Wireless A (WiFi 2), Wireless AC (WiFi 5), Wireless AX (WiFi 6), Wireless AXE (WiFi 6E), Wireless B (WiFi 1), Wireless G (WiFi 3), Wireless N (WiFi 4) | |
Bluetooth | ||
Bluetooth version | 5.2 |
Video connections
DisplayPort connector | ||
Number of Female Standard DisplayPort 1.4 ports | 1 | |
HDMI connector | ||
Number of Female HDMI type A 2.1 ports | 1 | |
Thunderbolt connector | ||
DVI connector | ||
VGA connector |
USB connectors
USB-C ports back panel | ||
Number of USB-C 3.2 Gen 2 (10Gbps) ports back panel | 1 | |
Number of USB-C 3.2 Gen 2x2 (20Gbps) ports back panel | 1 | |
USB-A ports back panel | ||
Number of USB-A 3.2 Gen 1 (5Gbps) ports back panel | 5 | |
Number of USB-A 3.2 Gen 2 (10Gbps) ports back panel | 3 |
Audio and Ethernet connectors
Headphone jack | ||
Microphone connector | ||
Ethernet port | ||
Number of 2.5Gbps Ethernet ports | 1 | |
Digital optical connector | ||
Audio processor | Realtek S12220A |
Power connectors
Fan headers | ||
Number of 4-pin CPU fan headers | 1 | |
Number of 4-pin CPU optional headers | 1 | |
Number of 4-pin system fan headers | 4 | |
Number of 4-pin CPU water cooling fan headers | 2 | |
Type of power connector for motherboard | 24-pin ATX connector | |
Type of power connector for CPU | 8+8 pin ATX connector | |
RGB headers | ||
Number of RGB headers | 4 | |
USB headers on the motherboard | ||
Number of USB 2.0 (480Mbps) headers on the motherboard | 3 | |
Number of USB 3.2 Gen 1 (5Gbps) headers on the motherboard | 1 |
Other connectors
BIOS flash button on the motherboard | ||
Clear CMOS button on the motherboard | ||
Power button on the motherboard |
RGB lighting
RGB lighting | ||
Number of colors lighting | Multicolor | |
Color lighting | RGB | |
Zones separately lit |
