Written by Sam

How do you install your BlueBuilt Monitor Arm with mechanical spring for 1 ultrawide monitor?

You want to connect your new BlueBuilt monitor arm to your ultrawide monitor. On this page, we'll explain how to do this in 9 steps.

Installing a BlueBuilt monitor arm

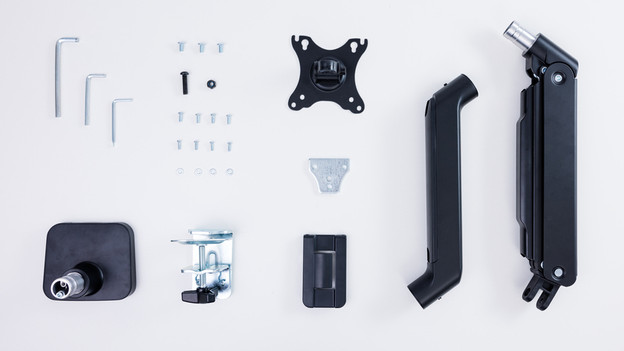

Tools for ultrawide monitor installation

You can install your new BlueBuilt monitor arm in 9 steps.

  • Step 1. Determine whether you want to use a clamp or drill a hole
  • Step 2a. Install the clamp and tighten the base
  • Step 2b. Drill a hole in your desk and twist the base to secure
  • Step 3. Install the swivel arm
  • Step 4. Install the lift arm
  • Step 5. Install the VESA plate on the monitor arm
  • Step 6. Tighten the screws in the monitor
  • Step 7. Install the monitor arm on the monitor
  • Step 8. Hide your cables via the cable duct
  • Step 9. Determine the flexibility of your monitor arm

Step 1: choose one of the 2 installation options

There are 2 possible ways to install your monitor arm. With a clamp mount, you attach the base firmly with a clamp. This is possible with desks between 10 and 40mm thick. If you choose feed-through mount, you have to drill a hole in your desk and screw the base into place. This is only suitable for desks with a thickness between 40 and 45mm. Did you choose a method? Check the VESA size of your monitor. This way, you can be sure that it fits on the monitor arm.

Step 2a: install the clamp and tighten the base

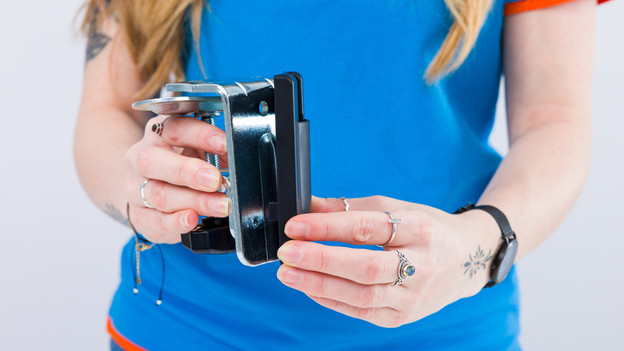

  1. Attach the plastic protection plate to the clamp attachment.

  2. Remove the cover from the base. Place the clamp attachment on the base and tighten the bolts.

  3. Measure the precise thickness of your desk. Depending on how thick the desktop is, place your desk clamp in the top or bottom holes. Then, tighten the bolts.

  4. Place the clamp on the desk and turn the screw upwards to secure the base.

Step 2b: drill a hole in your desk

  1. Unscrew the disc from the clamp and unscrew the clamp attachment

  2. Place the triangular mounting plate under the base with screws.

  3. Drill a 10mm hole in your desk where you want to place your monitor arm.

  4. Place the mounting plate around the feed-through mount. Then, screw it into the base through the hole until it's firmly secured.

Step 3: Install the swivel arm

Attach the swivel arm to the base. Tighten the screw to your liking. The tighter the screw, the less flexible the arm is.

Step 4: install the lift arm

Attach the lift arm. Tighten the screw to your liking.

Step 5: attach the VESA plate to the monitor arm

Attach the VESA plate to the monitor arm and tighten the screw.

Step 6: place the screws in the monitor

Place your monitor on a rug and insert the top screws into the monitor. You can use the washers to make it sturdier.

Step 7: install the monitor arm on the monitor

Slide the monitor onto the VESA plate and screw the bottom screws into the monitor.

Step 8: hide your cables via the cable duct

Slide the cable duct upwards to open it. Put the cables of your monitor inside and close it again.

Step 9: determine the flexibility of your monitor arm

Adjust the torque of the monitor arm with the included Allen key to determine the flexibility of the arm.

Your new BlueBuilt monitor arm is now completely installed.
